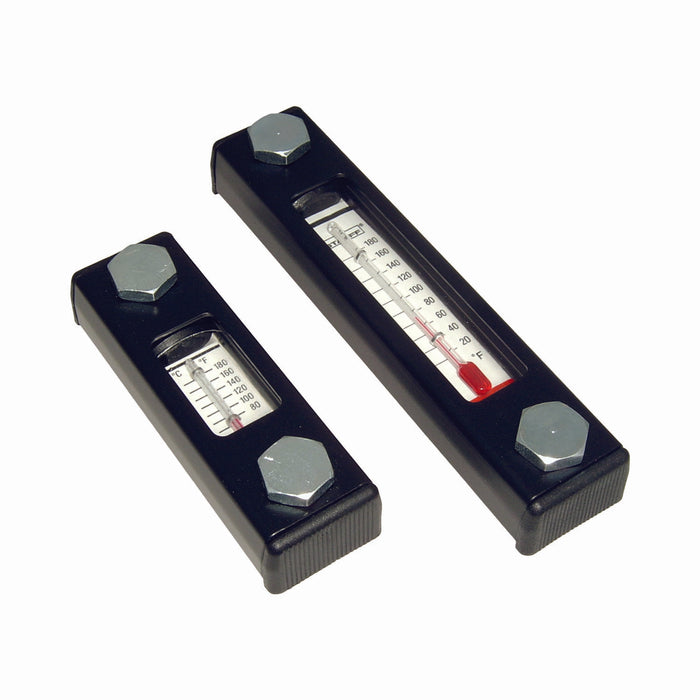

Indicador de nivel Stauff SNA-381-V

Indicador de nivel Stauff SNA-381-V

by Stauff
Sold out
$CLP 0 - $CLP 0
Consultar precio
$CLP 0 - $CLP 0
Consultar precio
SKU SNA-381-B-S-O-12

Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Tiempo de despacho: 6 a 9 semanas. Para ver la posibilidad de mejores tiempos de entrega, por favor pide una cotización.
Pide una cotización

Indicador de nivel Stauff SNA 381. Con sello de Viton.





Guía de opciones

 Diseño de placa Opciones de termómetro Medida del perno/tuerca (ISO)
S - Con logo Stauff O - Sin termómetro 12 - M12 (estándar)
N - Sin logo T - Con termómetro rojo 10 - M10
TB - Con termómetro azul
T1C - Termómetro con dial y sonda (200mm/7.87in) y escala celsius hasta 100°
T2C - Termómetro con dial y sonda (300mm/11.81in) y escala celsius hasta 100°
T1CF - Termómetro con dial y sonda (200mm/7.87in) y escala dual hasta 100°c/200°f
T2CF - Termómetro con dial y sonda (300mm/11.81in) y escala dual hasta 100°c/200°f




Characteristics

Visual fluid level indication in hydraulic reservoirs with maximum tank pressures not exceeding 2 bar / 29PSI



Nominal Sizes and Designs

  • 7 nominal sizes from 76mm / 2.99 in to 381mm / 15.00 in
  • Display either undivided (SNA-076 ... 176) or subdivided by strut(s) into 2 (SNA-254) or 3 sections (SNA-305 and SNA-381) Please see page 15 for alternative nominal sizes and designs.



Media Compatibility

Suitable for use with mineral and petroleum based hydraulic fluids (HL and HLP)



Materials

  • Housing made of Steel St 12, black powder-coated
  • Sight tube and plugs made of Polyamide (PA)
  • Seals made of NBR (Buna-N®)
  • Scale plate made of PVC

For the individual components of the level gauge (sight glass, housing, Seals, bolts), alternative materials for improved UV or chemical resistance, low-temperature applications down to -50°C / -58 °F and use with special media (such as bio-degradable fluids, diesel oils, gasolines) are available on request.



Technical Data

  • IP 65 protection rating: Dust tight and protected against water jets
  • Operating temperature range: -30 °C ... +80 °C / -22 °F ... +176 °F
  • Recommended tightening torque: 8N·m / 5.9 ft·lb



Accessories / Options

  • Red / blue capillary tube thermometers with a temperature display range of up to +80 °C / +180 °F
  • Dial thermometers with probe and a Celsius or a dual Celsius / Fahrenheit scale with a temperature display range of up to +100 °C / +200 °F
  • Thermo Switches
  • Temperature Sensors
  • Floating Ball
  • Deutsch Adaptor Cable
