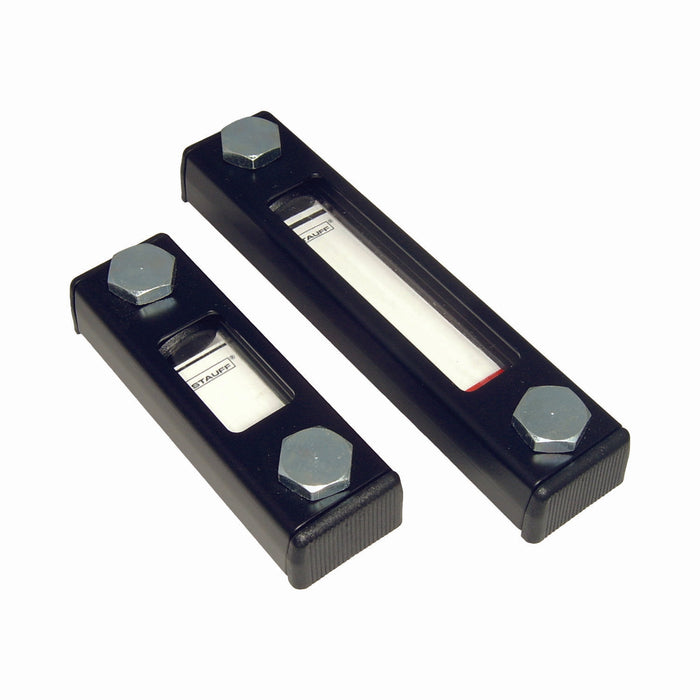

Indicador de nivel Stauff SNA-381-B

Indicador de nivel Stauff SNA-381-B

by Stauff
Sold out
$CLP 0 - $CLP 0
Consultar precio
$CLP 0 - $CLP 0
Consultar precio
SKU SNA-381-B-S-O-12

Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Tiempo de despacho: 6 a 9 semanas. Para ver la posibilidad de mejores tiempos de entrega, por favor pide una cotización.
Pide una cotización

Indicador de nivel Stauff SNA 381. Con sello de Buna-N.





Guía de opciones

 Diseño de placa Opciones de termómetro Medida del perno/tuerca (ISO)
S - Con logo Stauff O - Sin termómetro 12 - M12 (estándar)
N - Sin logo T - Con termómetro rojo 10 - M10
TB - Con termómetro azul
T1C - Termómetro con dial y sonda (200mm/7.87in) y escala celsius hasta 100°
T2C - Termómetro con dial y sonda (300mm/11.81in) y escala celsius hasta 100°
T1CF - Termómetro con dial y sonda (200mm/7.87in) y escala dual hasta 100°c/200°f
T2CF - Termómetro con dial y sonda (300mm/11.81in) y escala dual hasta 100°c/200°f




Characteristics

Visual fluid level indication in hydraulic reservoirs with maximum tank pressures not exceeding 2 bar / 29PSI



Nominal Sizes and Designs

  • 7 nominal sizes from 76mm / 2.99 in to 381mm / 15.00 in
  • Display either undivided (SNA-076 ... 176) or subdivided by strut(s) into 2 (SNA-254) or 3 sections (SNA-305 and SNA-381) Please see page 15 for alternative nominal sizes and designs.



Media Compatibility

Suitable for use with mineral and petroleum based hydraulic fluids (HL and HLP)



Materials

  • Housing made of Steel St 12, black powder-coated
  • Sight tube and plugs made of Polyamide (PA)
  • Seals made of NBR (Buna-N®)
  • Scale plate made of PVC

For the individual components of the level gauge (sight glass, housing, Seals, bolts), alternative materials for improved UV or chemical resistance, low-temperature applications down to -50°C / -58 °F and use with special media (such as bio-degradable fluids, diesel oils, gasolines) are available on request.



Technical Data

  • IP 65 protection rating: Dust tight and protected against water jets
  • Operating temperature range: -30 °C ... +80 °C / -22 °F ... +176 °F
  • Recommended tightening torque: 8N·m / 5.9 ft·lb



Accessories / Options

  • Red / blue capillary tube thermometers with a temperature display range of up to +80 °C / +180 °F
  • Dial thermometers with probe and a Celsius or a dual Celsius / Fahrenheit scale with a temperature display range of up to +100 °C / +200 °F
  • Thermo Switches
  • Temperature Sensors
  • Floating Ball
  • Deutsch Adaptor Cable
